Carbon Frame Compatibility Guide for Bike Shops
Quick Answer
Carbon frames are lightweight, stiff, and highly customizable, but compatibility issues can arise due to varying standards for bottom brackets (BB), headsets, axles, and brakes. Understanding these standards ensures your shop can provide correct parts, avoid installation problems, and maintain customer trust.
High-frequency questions from Reddit r/bikewrench:
- “BB86 vs BSA: Which bottom bracket fits my frame?”
- “What’s the deal with T47?”
- “How do I choose the correct headset standard for a carbon frame?”
Compatibility Table
| Component | Common Standards | Notes / Tips |
|---|---|---|
| Bottom Bracket | BB86, BB90, BB30, BSA, T47 | Check shell width and diameter before ordering |
| Headset | Integrated (IS), Semi-Integrated, External Cup (EC) | Ensure steerer tube matches the frame spec |
| Axles | Thru-Axle 12×142, 12×148, QR 100/130 | Thru-axle standard depends on frame dropouts |
| Brakes | Flat Mount, Post Mount | Match rotor size with frame clearance |
Image Suggestion: Infographic showing BB, headset, axle, and brake standards with labeled measurements.
Image2.0 Prompt:
“High-quality infographic of carbon bike frame compatibility, including labeled bottom bracket, headset, axle, and brake standards, clean modern technical style, infographic layout, white background, 4K resolution”
Bottom Bracket Standards
Understanding BB standards is crucial for carbon frames:
- BB86 / BB90 / BB30 – Press-fit systems with varying shell diameters. Popular in road bikes, but can creak if not installed properly.
- BSA / English Threaded – Reliable threaded system, easier to service; works with most cranksets.
- T47 – Combines press-fit speed with threaded reliability, increasingly adopted for high-end road and gravel bikes.
Tips for Bike Shops: Always verify the shell width and diameter before ordering BBs.
Image Suggestion: Side-by-side comparison of BB86, BSA, and T47 bottom brackets.
Image2.0 Prompt:
“Side-by-side comparison of BB86, BSA, and T47 bicycle bottom brackets, realistic 3D render, labeled, carbon frame background, studio lighting, high-detail”
Headset Standards
Carbon frames often feature integrated or semi-integrated headsets, which can confuse even experienced mechanics:
- Integrated (IS) – Bearings sit directly in the frame; minimal parts, but requires precise installation.
- Semi-Integrated / Zero Stack (ZS) – Press-fit cups with bearings inside; compatible with most modern stems.
- External Cup (EC) – Bearings housed in cups outside the frame; easy to service and replace.
Shop Tip: Confirm steerer tube diameter (1 1/8” vs 1.5”) and headset type before ordering.
Image Suggestion: Diagram showing integrated vs semi-integrated vs external cup headset setups.
Image2.0 Prompt:
“Technical diagram of bicycle headset standards, showing integrated, semi-integrated, and external cup setups, clean line art style, labeled parts, carbon frame background, vector-style”
Axle Standards
Axle choice affects wheel fit and frame stiffness:
- Thru-Axle: 12×142, 12×148 (Boost) for rear; 12×100 front. Provides maximum stiffness and alignment.
- Quick Release (QR): 100/130mm standard for older road bikes; less common on modern carbon frames.
Tip: Check rear dropout spacing to ensure wheel compatibility.
Image Suggestion: Illustration showing thru-axle vs QR on carbon frame rear dropout.
Image2.0 Prompt:
“Comparison of bicycle thru-axle vs quick release on carbon frame rear dropout, technical illustration, labeled, modern clean style, high-resolution”
Brake Standards
Most modern carbon frames use flat-mount disc brakes, while older or mountain bike frames may use post-mount:
- Flat Mount: Standard for road and gravel bikes; cleaner, lighter.
- Post Mount: Common in MTB; allows larger rotors and easier caliper alignment.
Tip: Always check rotor size clearance before installation.
Image Suggestion: Side-by-side comparison of flat-mount and post-mount disc brakes.
Image2.0 Prompt:
“Side-by-side comparison of flat-mount vs post-mount bicycle disc brakes on carbon frame, realistic rendering, labeled, studio lighting, clean background”

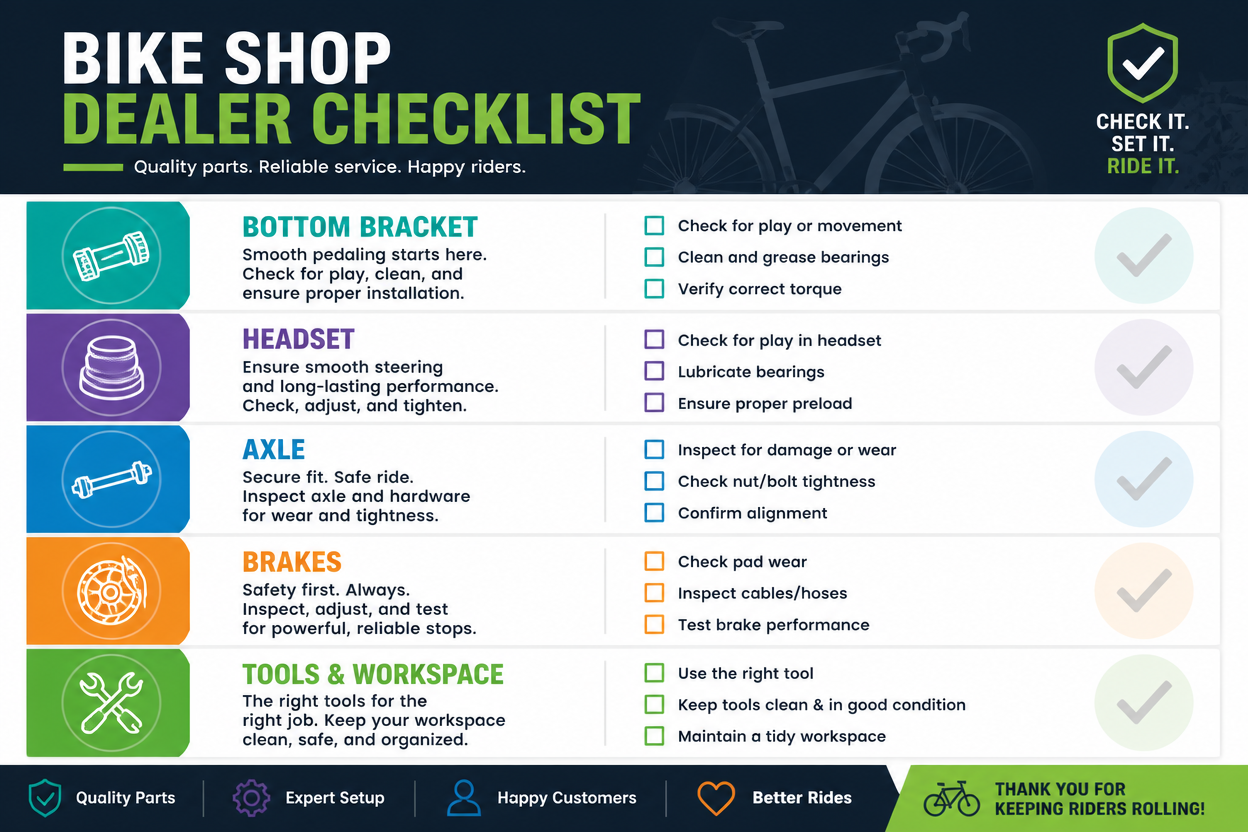

Dealer Checklist
Before selling or servicing carbon frames, confirm:
- Frame model and year → verify BB, headset, axle, and brake standards.
- Correct tools for press-fit BB and headset installation.
- Stock of compatible components for immediate service.
- Customer education → explain why compatibility matters for performance and warranty.
- Reference SunremoCycle compatibility resources for technical guidance.
