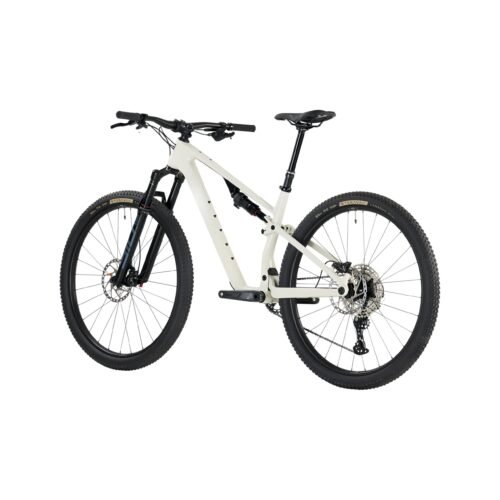

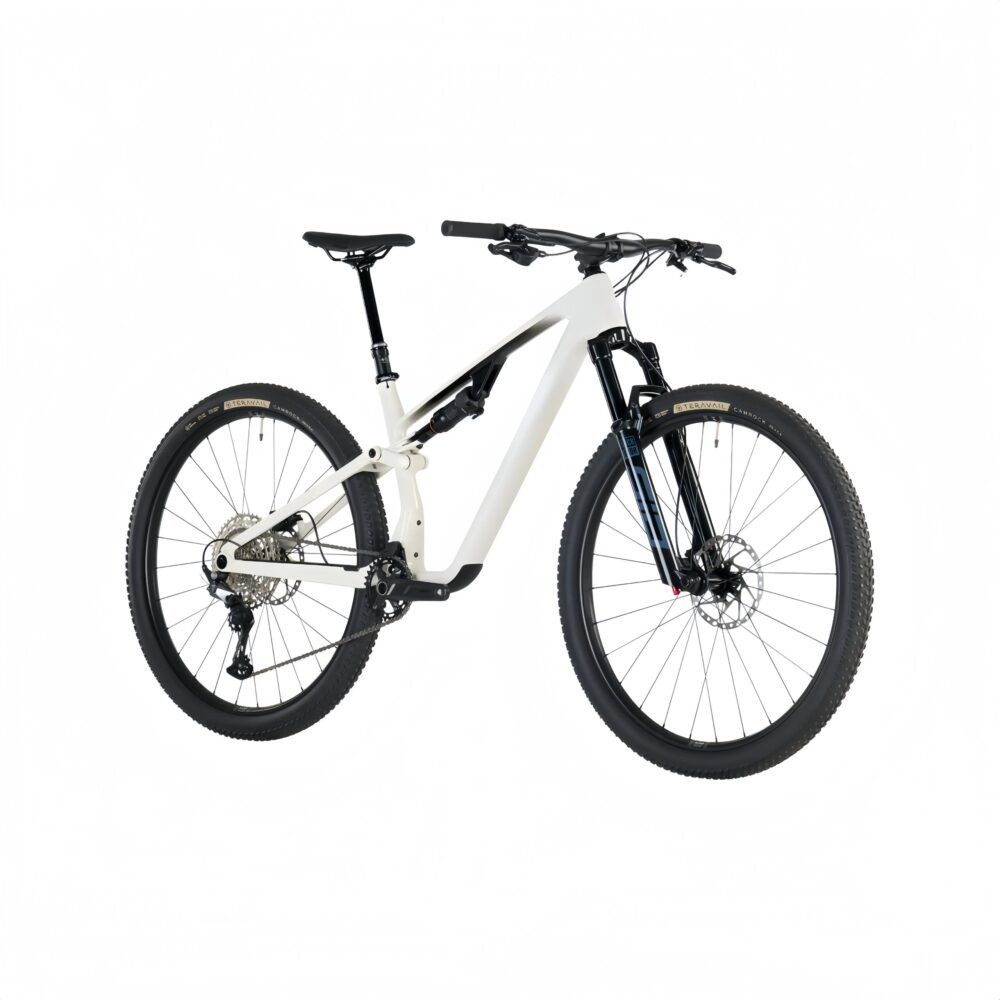

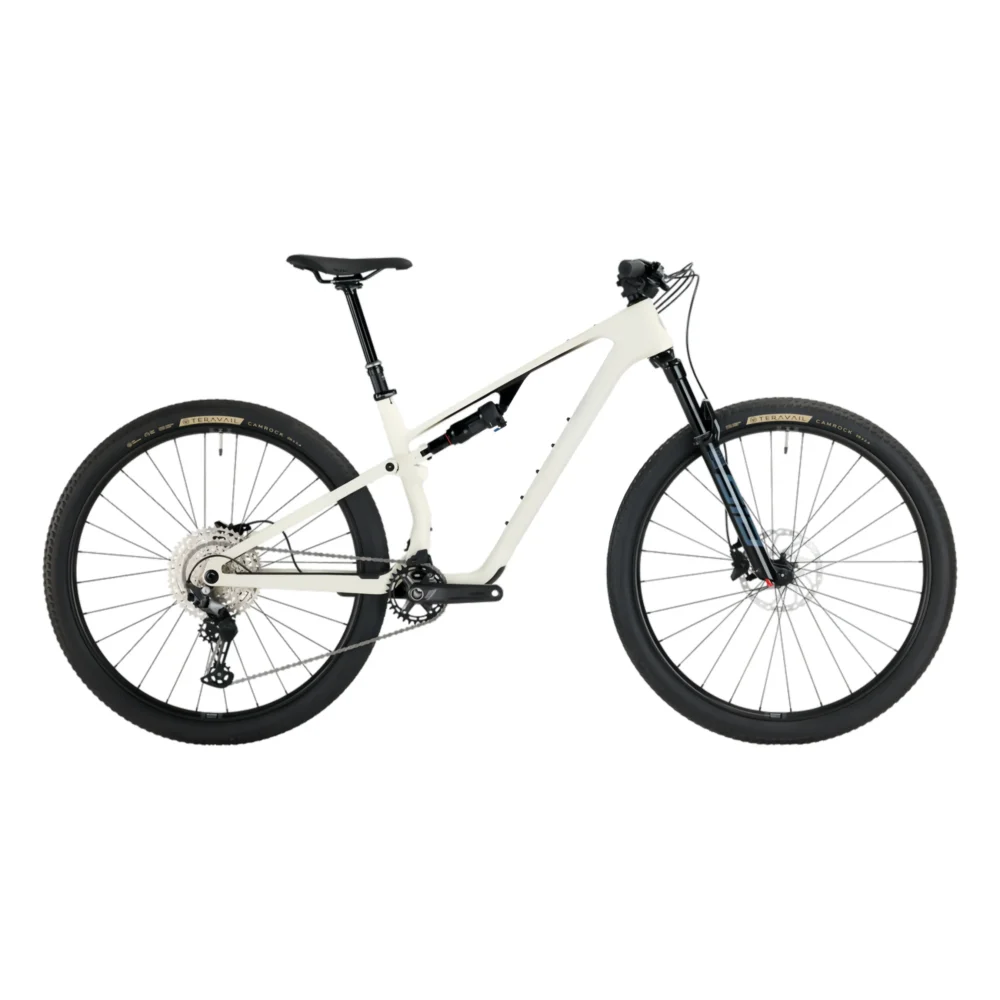

XC Endurance Carbon Bike Shimano Deore 12s Split Pivot
$3,999.00
Spearfish C Deore 12 is our endurance and XC MTB made for the most challenging days on the bike, ranging from 12-hour races to bikepacking events. Its stiff carbon frame wastes no watts, and 120mm of Split Pivot rear suspension adds to the efficiency ethos with responsive pedaling performance, predictable braking, and excellent traction. A RockShox SID fork adds 120mm of trail-smoothing travel up front.
Spearfish’s on-bike cargo features make long days out easier, with capacity for two bottles (up to three on MD–XL frames), and your repair kit, plus top tube mounts for accessories like our EXP-R Series Trillium Top Tube Bag or a K-Edge computer mount. The Shimano Deore 12-speed group is a reliable workhorse that goes mile after mile without issue — just like you. Spearfish C Deore 12 is the carbon endurance and XC MTB for your most ambitious pursuits.
| Product | Salsa Spearfish C Deore 12 Bike |
| Model Year | 2025 |
| Intended Use | Cross Country Trail |
| Rider | Unisex |
| Sizes and Geometry | XS (Default, Low), SM (Default, Low), MD (Default, Low), LG (Default, Low), XL (Default, Low) View Full Geometry |
| Wheel Size | 29″ |
| Frame Material | Carbon Fiber |
| Frame Material Details | High-Modulus Carbon front and rear triangles, 6061-T6 aluminum links, molded chainstay and lower down tube protection |
| Rear Travel | 120mm |
| Rear Shock | RockShox Deluxe Select+, 190mm length x 45mm stroke |
| Fork | RockShox SID, 35mm stanchions |
| Fork Travel | 120mm |
| Head Tube Diameter | Tapered, 1.125″ top, 1.5″ bottom |
| Headset | FSA Orbit 1.5E ZS No.57E, ZS44/28.6 upper, ZS56/40 lower |
| Handlebar | Alloy riser, 35mm clamp diameter |
| Stem | Salsa Guide Trail, 50mm length, 35mm bar clamp |
| Grips | Salsa File Tread, lock-on |
| Brakes | Shimano Deore M4100, 2-piston, Shimano RT64 180mm CENTER LOCK rotors |
| Brake Levers | Shimano Deore M4100 |
| Drivetrain | 1x |
| Shifters | Shimano Deore M6100, 12-speed, I-SPEC EV mounting bracket |
| Front Derailleur | None |
| Rear Derailleur | Shimano Deore M6100, 12-speed, SGS cage |
| ISCG Tabs | None |
| Chainguide | MRP 1x SL upper slider |
| Cranks | Shimano Deore MT512 Alloy |
| Chainrings | Shimano Deore MT512, 32 tooth |
| Bottom Bracket | Shimano MT500, BB92 press-fit |
| Pedals | None |
| Chain | Shimano Deore M6100, 12-speed, HYPERGLIDE+ |
| Cassette | Shimano Deore M6100, 12-speed, 10-51 tooth |
| Rims | WTB KOM Team i30 TCS, 30mm inner width, 28 hole |
| Hubs | Shimano TC500, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver |
| Spokes | – |
| Tires | Teravail Camrock, Light Trail casing, 29″ x 2.4″ |
| Saddle | WTB Silverado Medium, chromoly rails, DNAx padding |
| Seatpost | TranzX JD-YSI05 RAD+ dropper, Shimano MT500 remote with I-SPEC EV mounting bracket Drop: 125mm (XS), 150mm (SM/MD), 170mm (LG/XL) |
| Seatpost Diameter | 30.9mm |
| Seatpost Clamp | Single bolt, 35.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29″ x 2.4″ |
| Bottle Cage Mounts | Two (XS/SM) or three (MD-XL) inside front triangle, plus accessory mounts on top tube |
| Colors | Bone White |
| Warranty | 5 years main frame, 3 years Salsa components, 2 years rear triangle and suspension frame parts |
| Weight | 29 lb 13 oz (13,523 g) |
| Miscellaneous |
|
Size Geometry
| Size | XS (Default, Low) | SM (Default, Low) | MD (Default, Low) | LG (Default, Low) | XL (Default, Low) |
| Top Tube Length | 568mm, 569mm | 585mm, 586mm | 607mm, 608mm | 629mm, 630mm | 651mm, 652mm |
| Head Tube Angle | 66.3°, 66.0° | 66.3°, 66.0° | 66.3°, 66.0° | 66.3°, 66.0° | 66.3°, 66.0° |
| Head Tube Length | 95mm | 105mm | 115mm | 125mm | 135mm |
| Seat Tube Angle | 77.3°, 77.0° | 77.3°, 77.0° | 77.3°, 77.0° | 77.3°, 77.0° | 77.3°, 77.0° |
| Seat Tube Length | 380mm | 405mm | 430mm | 455mm | 480mm |
| Bottom Bracket Height | 343mm (32mm drop), 349mm (35mm drop) | 343mm (32mm drop), 349mm (35mm drop) | 343mm (32mm drop), 349mm (35mm drop) | 343mm (32mm drop), 349mm (35mm drop) | 343mm (32mm drop), 349mm (35mm drop) |
| Chainstay Length | 430mm, 431mm | 430mm, 431mm | 430mm, 431mm | 430mm, 431mm | 430mm, 431mm |
| Wheelbase | 1157mm, 1158mm | 1176mm, 1177mm | 1200mm, 1201mm | 1224mm, 1225mm | 1248mm, 1249mm |
| Standover | 720mm, 717mm | 720mm, 717mm | 720mm, 717mm | 720mm, 717mm | 720mm, 717mm |
| Reach | 435mm, 431mm | 450mm, 446mm | 470mm, 466mm | 490mm, 487mm | 510mm, 507mm |
| Stack | 589mm, 592mm | 598mm, 601mm | 608mm, 610mm | 617mm, 620mm | 626mm, 629mm |
| Additional Info |
|
||||
| Size | LG, MD, SM, XL, XS |
|---|
