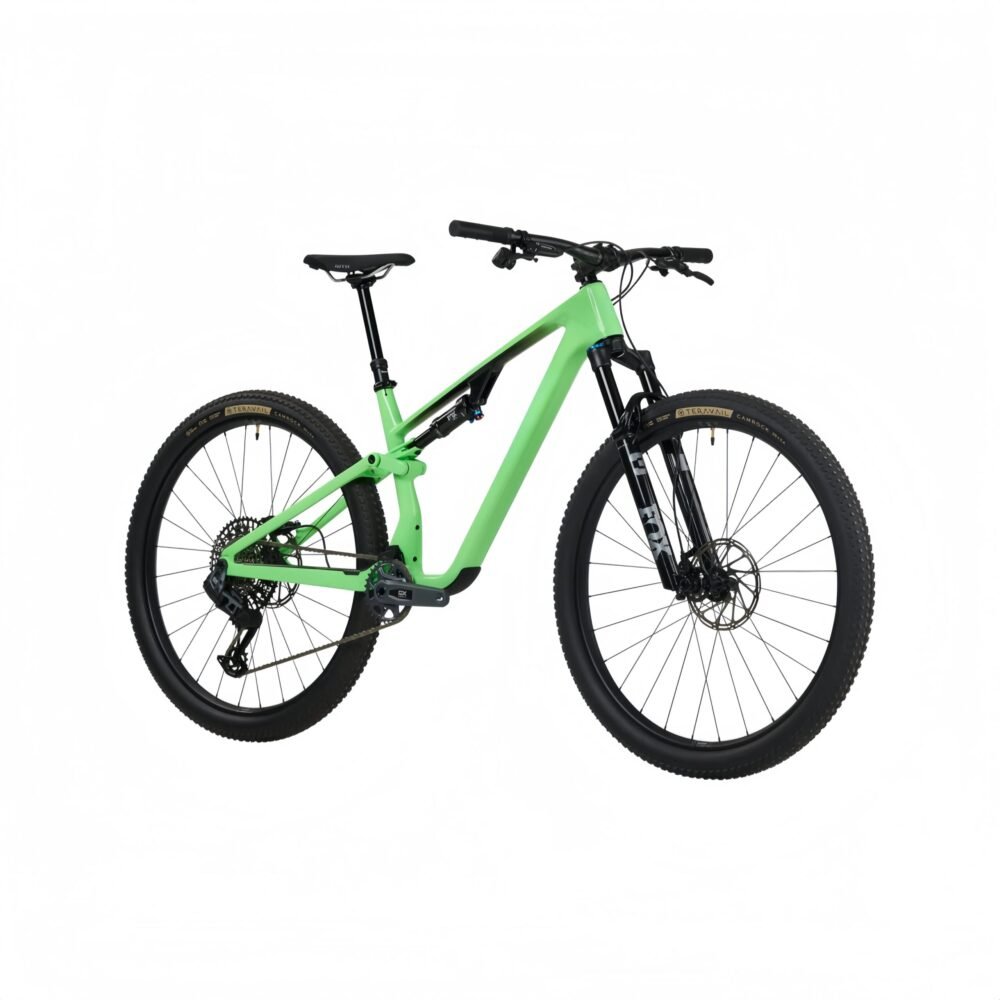

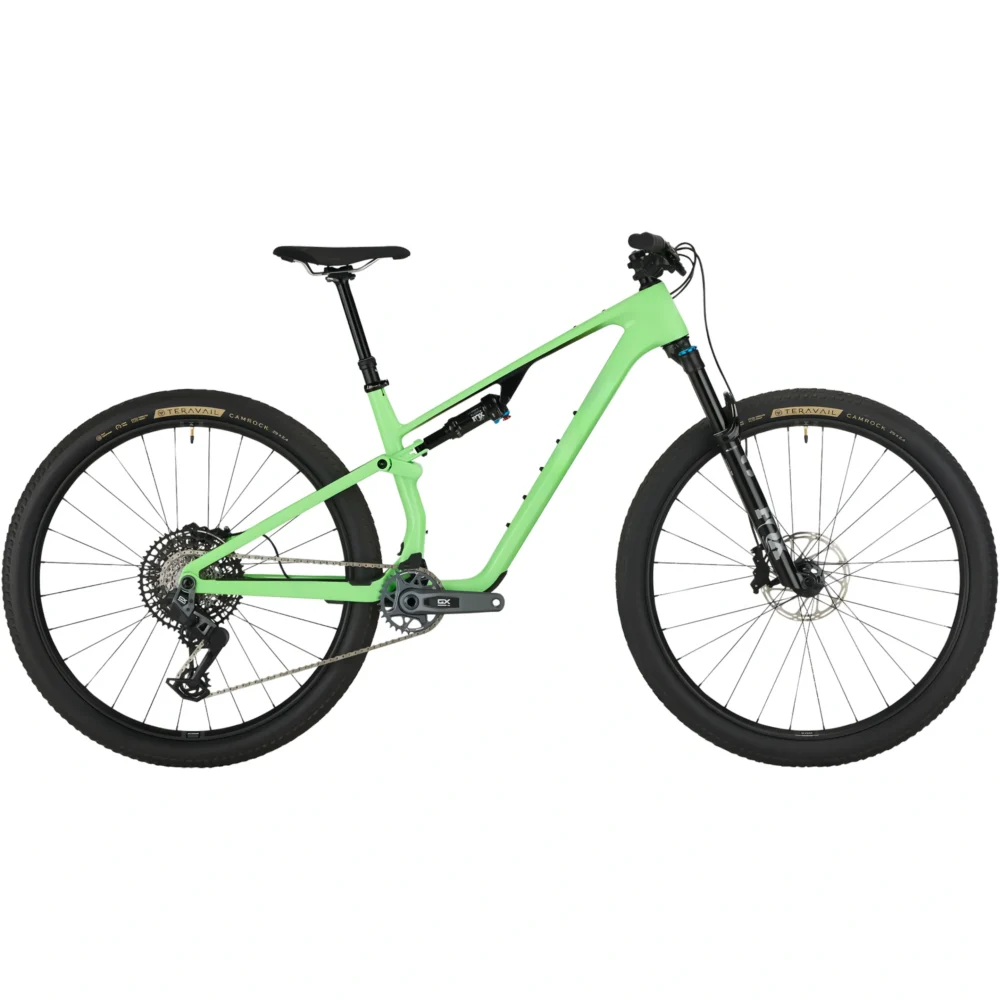

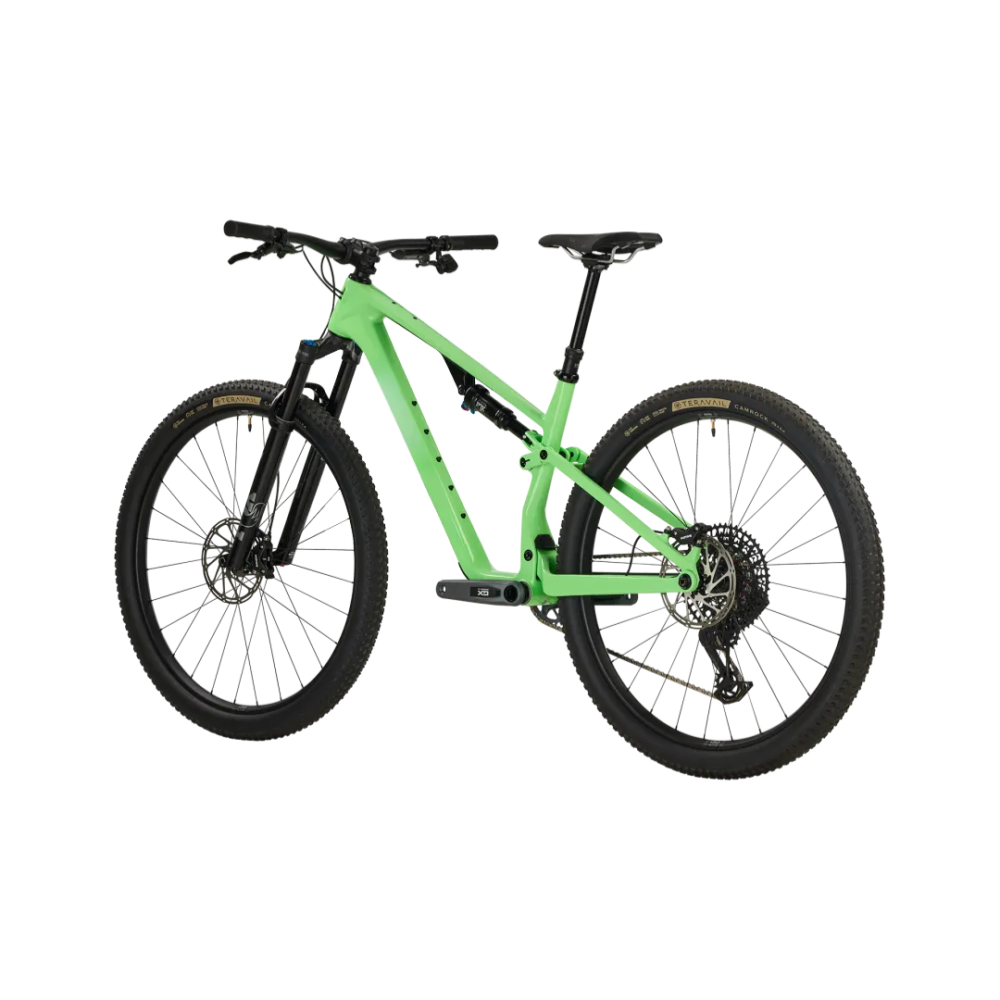

Trail-Ready Carbon Endurance XC Bike | Split Pivot Suspension & Speed Geometry
$6,999.00
Faster, farther, more efficient: that’s the Spearfish ethos. Our endurance XC mountain bike is built with our all-new Deluxe carbon construction option that’s more than 250 grams lighter than our standard carbon offering. This stiff, lightweight carbon frame translates more of your pedal power into propulsion and rewards you with responsive handling. 120mm of Split Pivot rear suspension travel provides supreme pedaling efficiency and active traction throughout its travel. A 120mm Fox 34 SL Performance Elite GRIP X fork delivers 120mm of front suspension travel to keep you in control over rugged tracks.
Convenient cargo mounts let you adapt your loadout for casual trail rides with friends or can’t-stop FKT attempts. Carry two bottles (or up to three on MD–XL frames), your repair kit, and accessories like our EXP-R Series Trillium Top Tube Bag or a K-Edge computer mount — all on your frame. The SRAM GX Transmission groupset combines the precision and speed of electronic shifting with the durability of SRAM’s Full Mount derailleur design for a system that’s more hurry, less worry.
Spearfish C DLX GX Transmission is the perfect endurance and XC mountain bike for chasing your next monumental Adventure by Bike.
| Frameset | |
|---|---|
| Frame | Spearfish Carbon Deluxe |
| Color | Citrus Green |
| Suspension Fork | Fox 34 SL Performance Elite, GRIP X, 120mm |
| Rear Shock | Fox Float SL LV Performance Elite |
| Components | |
| Headset | FSA Orbit 1.5E ZS NO.57E |
| Seatpost | TranzX YSI08 RAD+ Dropper Post w/ GL Stealth MMX Lever, XS:125mm travel; SM–MD:150mm travel; LG–XL:170mm travel |
| Stem | Salsa 35.0 Guide Trail, 50mm |
| Grips/Bar Tape | WTB Wavelength Lock-On |
| Saddle | WTB Silverado, Medium, Cromoly, DNAx |
| Handlebar | Race Face Turbine |
| Drivetrain | |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX Eagle Transmission |
| Cassette | SRAM GX Eagle Transmission XS-1275, 10-52t, 12-speed |
| Chain | SRAM GX Eagle Transmission Flattop |
| Crankset | SRAM GX Eagle Transmission, 32t. MRP 1x SL TR2 28-34t Direct Mount Guide |
| Shifter | SRAM AXS Pod Rocker, Right w/ MatchMaker X Clamp |
| Brake Levers | SRAM Motive Bronze Stealth |
| Brake Calipers | SRAM Motive Bronze Stealth, 4-piston |
| Bottom Bracket | SRAM DUB PF92 MTB Wide |
| Rotors | SRAM CenterLine 2.0, (6-bolt, 180mm front and rear) |
| Wheels | |
| Front Tire | Teravail Camrock 29×2.4″, Light Trail casing, WTB TCS Sealant included |
| Rear Tire | Teravail Camrock 29×2.4″, Light Trail casing, WTB TCS Sealant included |
| Front Hub | WTB Frequency 15x110mm |
| Rear Hub | WTB Frequency 12x148mm |
| Spoke | Double-butted Pillar Stainless Steel, black |
| Rim | WTB KOM Light i30 TCS, 28h |
| Weight | |
| Complete Bike | 26lb 10oz |

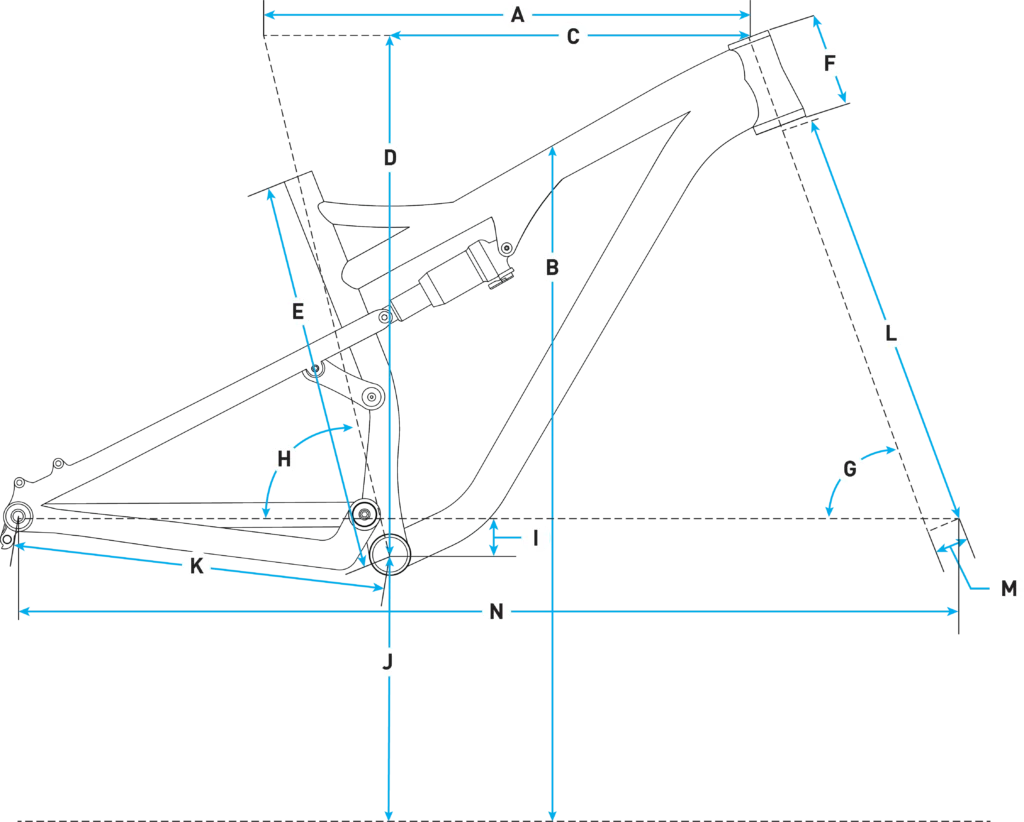

| Size | X-Small | Small | Medium | Large | X-Large |
| A. Effective Top Tube | 567.8- 568.6 | 584.9- 585.7 | 606.9- 607.7 | 629.0- 629.8 | 651.1- 651.9 |
| B. Stand Over | 719.1- 716.4 | 719.2- 716.3 | 719.2- 716.3 | 719.3- 716.2 | 719.3- 716.2 |
| C. Reach | 435.0- 431.4 | 450.0- 446.5 | 470.0- 466.5 | 490.0- 486.4 | 510.0- 506.5 |
| D. Stack | 589.3- 591.9 | 598.4- 601.1 | 607.6- 610.3 | 616.7- 619.6 | 625.9- 628.8 |
| E. Total Seat Tube Length | 380.0 | 405.0 | 430.0 | 455.0 | 480.0 |
| F. Headtube Length | 95.0 | 105.0 | 115.0 | 125.0 | 130.0 |
| G. Headtube Angle | 66.3 – 66.0 |
66.3 – 66.0 |
66.3 – 66.0 |
66.3 – 66.0 |
66.3 – 66.0 |
| H. Seat Tube Angle | 77.3 – 77.0 |
77.3 – 77.0 |
77.3 – 77.0 |
77.3 – 77.0 |
77.3 – 77.0 |
| I. BB Drop | 31.0- 35.4 | 31.0- 35.5 | 31.0- 35.5 | 31.0- 35.6 | 31.0- 35.6 |
| J. BB Height | 342.0- 337.6 | 342.0- 337.5 | 342.0- 337.5 | 342.0- 337.4 | 342.0- 337.4 |
| K. Chainstay Length | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 |
| L. Fork Length Axle to Crown | 530.0 | 530.0 | 530.0 | 530.0 | 530.0 |
| M. Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| N. Wheelbase | 1157.0- 1157.7 | 1176.1- 1176.7 | 1200.0- 1200.7 | 1224.1- 1224.7 | 1248.1- 1248.7 |
| Crank Arm Length | 165.0 | 165.0 | 165.0 | 170.0 | 170.0 |
| Handlebar Width | 760.0 | 760.0 | 800.0 | 800.0 | 800.0 |
| Recommended Rider Height | 146.0 – 159.0 | 157.0 – 170.0 | 168.0 – 180.0 | 178.0 – 191.0 | 188.0 |
| Stem Length | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
Measurements based on:
- an unsprung bike (no sag)
- a 29 x 2.4″ tire measuring 746mm in diameter
- Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
- Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
Frame Specs
| Design Wheel/Tire Sizes | 29 x 2.0–2.4″ |
| Max Tire Outer Diameter | Frame:29 x 2.4″ Fork:Max. tire diameter:758mm, Max. tire width 66mm |
| Frame Construction | Carbon |
| Suspension Fork Length (Travel) | 130mm |
| Fork Offset | 44mm |
| Axle to Crown | 541mm |
| Rear Spacing | 12 x 148mm |
| Rear Axle Size | 12 x 188mm, TP=1.0, TL=13mm |
| Rear Brake (Rotor) | 74mm post mount (180–200mm) |
| Front Brake (Rotor) | 74mm post mount (180–200mm) |
| Headset – Upper | ZS44/28.6 |
| Headset – Lower | ZS56/40 |
| Rear Shock Size | 190 x 45mm Forward Shock Mount:Ø8 x 20mm Rearward Shock Mount:Standard Ø15MM, no bushing |
| Front Spacing | 15 x 110mm |
| Front Axle Size | Maxle Stealth:15 x 158mm, TP=M15x1.5, TL=9 |
| Steerer Tube | 1.125–1.5″ tapered |
| Crown Race | 59mm |
| Seatpost | 30.9mm |
| Dropper Post Compatible | Yes (internal) |
| Seatpost Clamp | 35.4mm |
| Max Post Insertion | SM:215mm; MD:240mm; LG:265mm; XL:290mm |
| Derailluer Hanger | SRAM UDH (w/ Ø30mm washer) |
| Bottom Bracket | BB92 press-fit |
| Crankset (Max Ring) | 34t, 55mm Chainline |
| Accessory Mounts | XS–SM:downtube accessory mount; MD–XL:Three-Pack downtube mount; Top tube accessory mounts on all sizes |
| Bottle Mounts | XS–SM:two full size bottles; MD–XL:three bottles |
| Size | L, S, XL, XS |
|---|
Frequently Asked Questions
1.Do you provide OEM manufacturing services for private brands?
Yes. Sunremo has over 20 years of experience in OEM manufacturing, delivering premium-quality customized bicycle frames for global brands. From material selection to final quality inspection, every step follows strict manufacturing standards to ensure consistency, reliability, and long-term performance.
2.Can you develop a custom frame design exclusively for our brand?
Absolutely. We offer both OEM and ODM solutions. Whether you already have drawings or need full product development from concept, our engineering team supports geometry design, layup optimization, prototyping, testing, and mass production — ensuring your product stands out in both performance and branding.
3.Do you work with small or emerging brands?
Yes. We partner with brands of all sizes, from startups to established international companies. Our flexible production system allows scalable order quantities while maintaining the same quality standards and technical support.
4.What is your minimum order quantity (MOQ)?
MOQ depends on the model and customization level.
Standard models: The standard MOQ is 100 pieces
Full custom ODM projects: discussed based on tooling and development scope
Please contact us for an accurate quotation.
5.Can you provide samples or prototypes before mass production?
Yes. We strongly recommend sample validation before bulk production.
Prototype lead time is usually 20–45 days, depending on complexity and testing requirements.
6.What quality standards and certifications do you follow?
Our frames are manufactured under strict quality management systems.
Products can be tested and certified according to ISO, EN, and UCI standards upon request, ensuring compliance with international safety and performance requirements.
7.What warranty do you offer?
Sunremo provides a 2–5 year structural warranty depending on the frame model and application. Detailed warranty terms are supplied with each project.
8.What payment methods do you accept?
We accept secure and flexible payment methods including T/T, L/C, D/P, D/A, PayPal, and bank transfer.
9.How long is production and delivery time?
Production time depends on order volume and customization level:
10.Why choose Sunremo as your manufacturing partner?
✅ Direct factory with stable production capacity
✅ Advanced carbon fiber manufacturing expertise
✅ Strict QC and traceability system
✅ Flexible OEM/ODM cooperation model
✅ Competitive pricing with premium quality
✅ Professional international communication support
