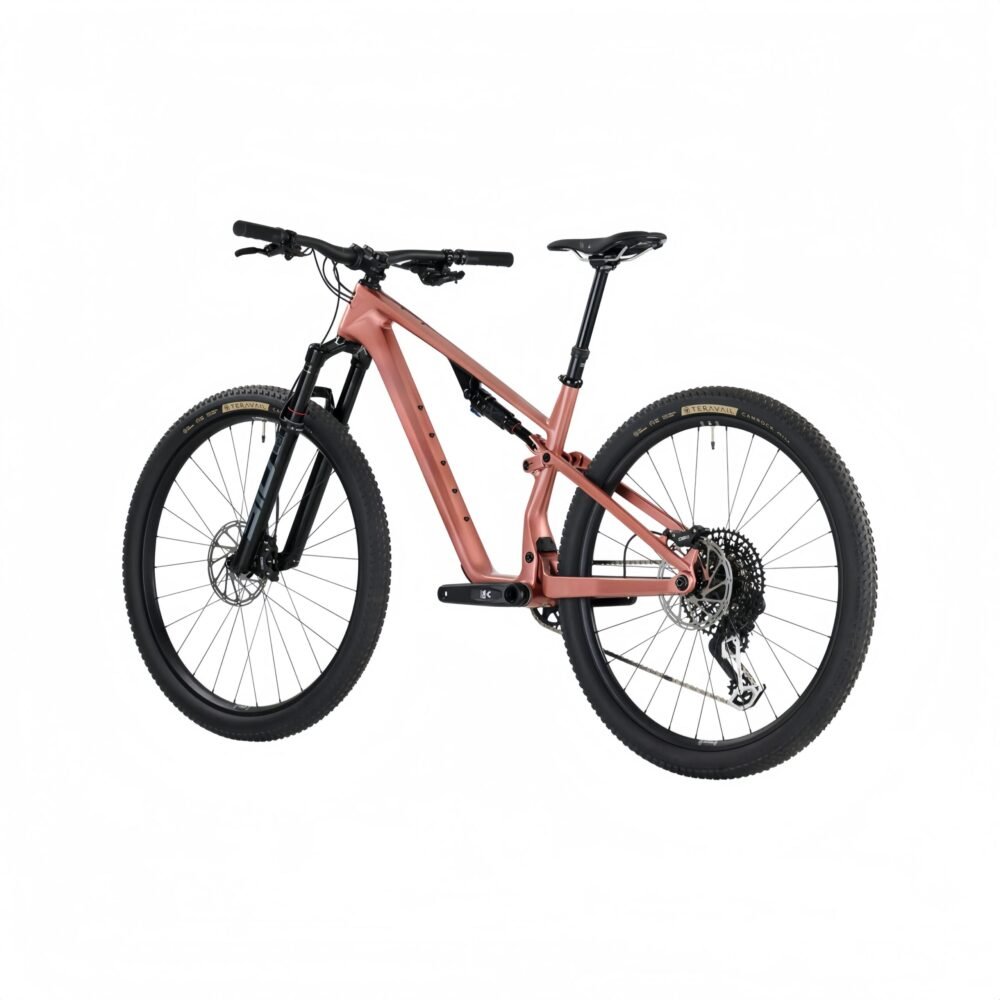

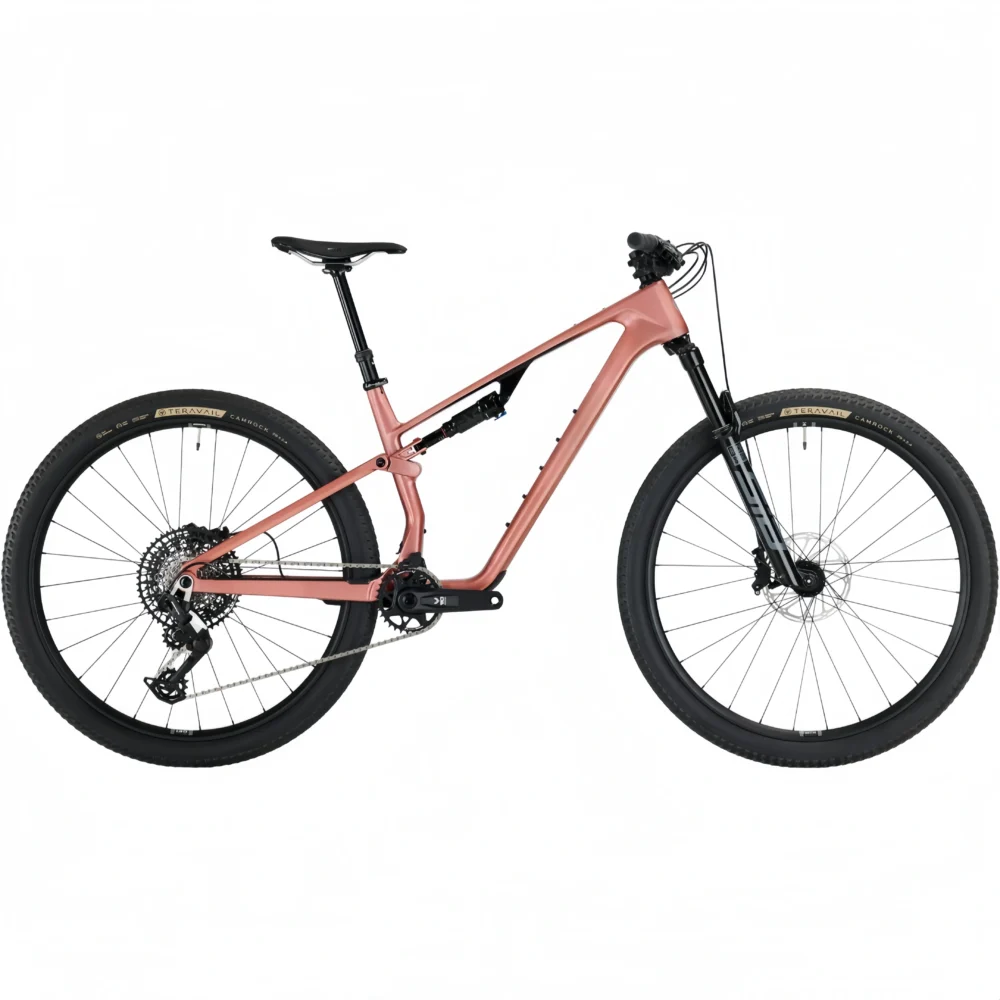

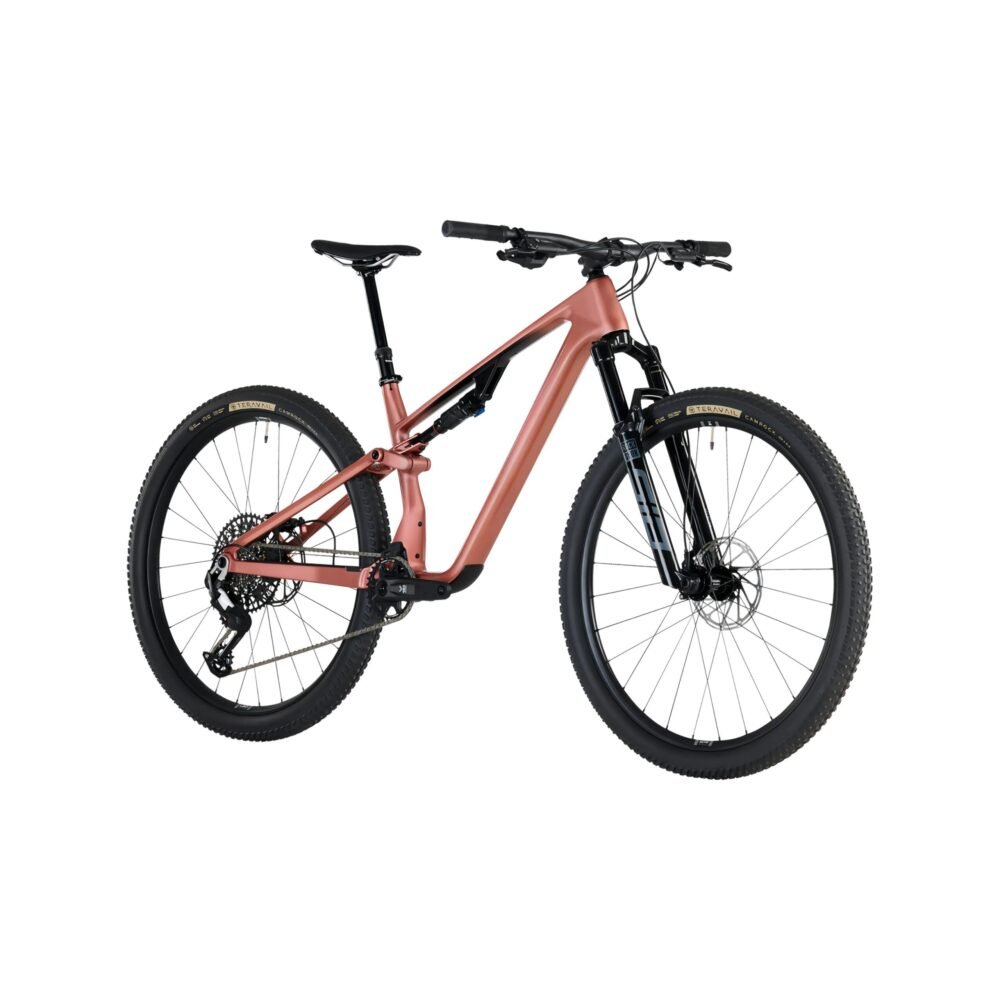

Tough Singletrack Endurance XC Bike | 430mm Chainstays & Split Pivot Suspension
$5,399.00
Spearfish also features on-bike cargo mounts so you can carry two bottles (up to three on MD–XL frames), your multitool, tube, and more for fewer resupply stops. SRAM’s Eagle 90 Transmission shifting blends electronic precision and Full Mount derailleur durability for a drivetrain you can trust. Spearfish C Eagle 90 is a carbon XC bike built to make your monumental efforts more manageable.
| Frameset | |
|---|---|
| Frame | Spearfish Carbon |
| Color | Dusty Rose |
| Suspension Fork | RockShox SID Select+ 2-position, 120mm |
| Rear Shock | RockShox SIDLuxe Select+ |
| Components | |
| Headset | FSA Orbit 1.5E ZS NO.57E |
| Seatpost | TranzX YSI08 RAD+ Dropper Post w/ GL Stealth MMX Lever, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel |
| Stem | Salsa 35.0 Guide Trail, 50mm |
| Grips/Bar Tape | WTB Wavelength Lock-On |
| Saddle | WTB Silverado, Medium, Cromoly, DNAx |
| Handlebar | Race Face Aeffect |
| Drivetrain | |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Eagle 90 Transmission |
| Cassette | SRAM GX Eagle Transmission XS-1275, 10-52t, 12-speed |
| Chain | SRAM Eagle 70 Transmisssion Flattop |
| Crankset | SRAM Eagle 90, 32t w/MRP 1x SL TR2 28-34t Direct Mount Guide |
| Shifter | SRAM Eagle 90, MatchMaker X Clamp |
| Brake Levers | SRAM DB8 Stealth |
| Brake Calipers | SRAM DB8 Stealth |
| Bottom Bracket | SRAM DUB PF92 MTB Wide |
| Rotors | SRAM CenterLine2.0 (6-bolt, 180mm front and rear) |
| Wheels | |
| Front Tire | Teravail Camrock 29×2.4″, Light Trail casing, WTB TCS Sealant included |
| Rear Tire | Teravail Camrock 29×2.4″, Light Trail casing, WTB TCS Sealant included |
| Front Hub | WTB Frequency Sport 15x110mm |
| Rear Hub | WTB Frequency Boost 12x148mm |
| Spoke | Double-butted Pillar Stainless Steel, black |
| Rim | WTB ASYM i30 TCS, 28h |
| Weight | |
| Complete Bike | 28lb 14oz |

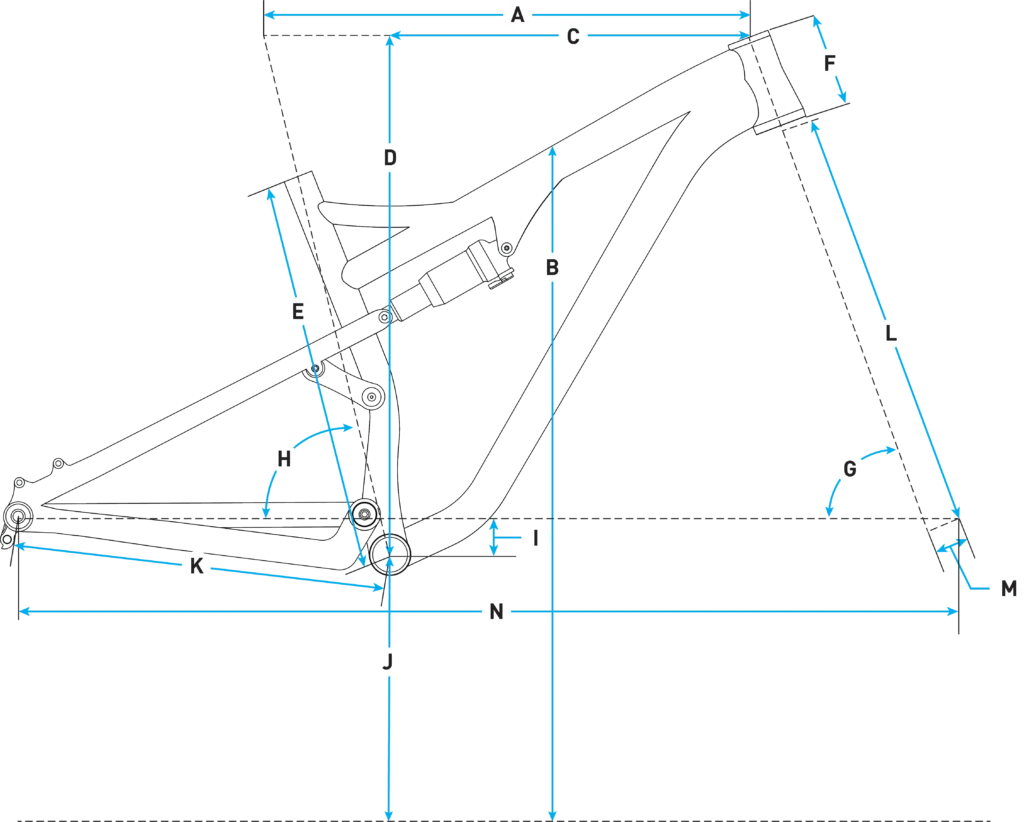

| Size | X-Small | Small | Medium | Large | X-Large |
| A. Effective Top Tube | 567.8- 568.6 | 584.9- 585.7 | 606.9- 607.7 | 629.0- 629.8 | 651.1- 651.9 |
| B. Stand Over | 719.1- 716.4 | 719.2- 716.3 | 719.2- 716.3 | 719.3- 716.2 | 719.3- 716.2 |
| C. Reach | 435.0- 431.4 | 450.0- 446.5 | 470.0- 466.5 | 490.0- 486.4 | 510.0- 506.5 |
| D. Stack | 589.3- 591.9 | 598.4- 601.1 | 607.6- 610.3 | 616.7- 619.6 | 625.9- 628.8 |
| E. Total Seat Tube Length | 380.0 | 405.0 | 430.0 | 455.0 | 480.0 |
| F. Headtube Length | 95.0 | 105.0 | 115.0 | 125.0 | 130.0 |
| G. Headtube Angle | 66.3 – 66.0 |
66.3 – 66.0 |
66.3 – 66.0 |
66.3 – 66.0 |
66.3 – 66.0 |
| H. Seat Tube Angle | 77.3 – 77.0 |
77.3 – 77.0 |
77.3 – 77.0 |
77.3 – 77.0 |
77.3 – 77.0 |
| I. BB Drop | 31.0- 35.4 | 31.0- 35.5 | 31.0- 35.5 | 31.0- 35.6 | 31.0- 35.6 |
| J. BB Height | 342.0- 337.6 | 342.0- 337.5 | 342.0- 337.5 | 342.0- 337.4 | 342.0- 337.4 |
| K. Chainstay Length | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 | 430.0- 431.2 |
| L. Fork Length Axle to Crown | 530.0 | 530.0 | 530.0 | 530.0 | 530.0 |
| M. Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| N. Wheelbase | 1157.0- 1157.7 | 1176.1- 1176.7 | 1200.0- 1200.7 | 1224.1- 1224.7 | 1248.1- 1248.7 |
| Crank Arm Length | 165.0 | 165.0 | 165.0 | 170.0 | 170.0 |
| Handlebar Width | 760.0 | 760.0 | 800.0 | 800.0 | 800.0 |
| Recommended Rider Height | 146.0 – 159.0 | 157.0 – 170.0 | 168.0 – 180.0 | 178.0 – 191.0 | 188.0 |
| Stem Length | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
Measurements based on:
- an unsprung bike (no sag)
- a 29 x 2.4″ tire measuring 746mm in diameter
- Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
- Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
Frame Specs
| Design Wheel/Tire Sizes | 29 x 2.0–2.4″ |
| Max Tire Outer Diameter | Frame:29 x 2.4″ Fork:Max. tire diameter:758mm, Max. tire width 66mm |
| Frame Construction | Carbon |
| Suspension Fork Length (Travel) | 130mm |
| Fork Offset | 44mm |
| Axle to Crown | 541mm |
| Rear Spacing | 12 x 148mm |
| Rear Axle Size | 12 x 188mm, TP=1.0, TL=13mm |
| Rear Brake (Rotor) | 74mm post mount (180–200mm) |
| Front Brake (Rotor) | 74mm post mount (180–200mm) |
| Headset – Upper | ZS44/28.6 |
| Headset – Lower | ZS56/40 |
| Rear Shock Size | 190 x 45mm Forward Shock Mount:Ø8 x 20mm Rearward Shock Mount:Standard Ø15MM, no bushing |
| Front Spacing | 15 x 110mm |
| Front Axle Size | Maxle Stealth:15 x 158mm, TP=M15x1.5, TL=9 |
| Steerer Tube | 1.125–1.5″ tapered |
| Crown Race | 59mm |
| Seatpost | 30.9mm |
| Dropper Post Compatible | Yes (internal) |
| Seatpost Clamp | 35.4mm |
| Max Post Insertion | SM:215mm; MD:240mm; LG:265mm; XL:290mm |
| Derailluer Hanger | SRAM UDH (w/ Ø30mm washer) |
| Bottom Bracket | BB92 press-fit |
| Crankset (Max Ring) | 34t, 55mm Chainline |
| Accessory Mounts | XS–SM:downtube accessory mount; MD–XL:Three-Pack downtube mount; Top tube accessory mounts on all sizes |
| Bottle Mounts | XS–SM:two full size bottles; MD–XL:three bottles |
| Size | L, S, XL, XS |
|---|
